Mesh morphing with pyssam
This example visualises how pyssam can be used to visualise SSM modes of variance as a surface.
On this dataset, and definitely more real-world datasets, the results of the morphing will be highly dependent on the quality of the template. If the results are not satisfactory, simply use a template which is more similar to the target.
[124]:
import pyssam
[125]:
from copy import copy
import matplotlib.pyplot as plt
import numpy as np
import vedo as v
First, we source landmark data to use in our shape model
[126]:
N_SAMPLES = 50
torus = pyssam.datasets.Torus()
torus_data = torus.make_dataset(N_SAMPLES)
landmark_coordinates = np.array([torus_i.points() for torus_i in torus_data])
Initialising the model
Here we convert to landmark coordinates into a parameterised shape model. We first initialise the class, which handles all pre-processing. Then, we can compute the shape model components and mean population shape
[127]:
# if USE_SCALED_DATA = True, we should have 1 mode. If False, we should have 2 modes.
USE_SCALED_DATA = True
ssm_obj = pyssam.SSM(landmark_coordinates)
if USE_SCALED_DATA:
ssm_obj.create_pca_model(ssm_obj.landmarks_columns_scale)
else:
ssm_obj.create_pca_model(landmark_coordinates.reshape(N_SAMPLES, -1))
mean_shape_columnvector = ssm_obj.compute_dataset_mean()
mean_shape = mean_shape_columnvector.reshape(-1, 3)
shape_model_components = ssm_obj.pca_model_components
/Users/josh.williams/gitrepos/pyssam_morphing/pyssam/statistical_model_base.py:331: UserWarning: Dataset mean should be 0, is equal to [-6.2793369e-08 1.3605231e-07 4.1862247e-08 1.8314734e-07
1.6483260e-07 -1.7268177e-07 1.6221621e-07 2.0931124e-08
1.3081952e-08 -3.3489798e-07 -1.7791454e-07 -3.9245858e-08
-2.8780295e-08 3.5059631e-07 1.2297035e-07 1.4390147e-07
2.6163905e-08 2.3547514e-08 5.7560591e-08 -2.3024236e-07
8.1108105e-08 7.0642542e-08 1.1773757e-07 -9.1573668e-08
-6.0176980e-08 -2.5902264e-07 2.1716041e-07 -2.3285875e-07
1.3605231e-07 7.0642542e-08 -2.7995378e-07 2.6163903e-07
1.4651786e-07 -6.8026154e-08 1.9361289e-07 6.8026154e-08
-2.3547514e-08 -3.6629466e-08 7.8491716e-08 -7.5875320e-08
-2.0931124e-08 -2.1454402e-07 2.4855709e-07 -2.8780295e-08
-1.4390147e-07 -1.0465562e-07 -2.8780295e-08 -1.5436703e-07
-2.8780295e-07 -2.1716041e-07]
warn("Dataset mean should be 0, " f"is equal to {dataset.mean(axis=1)}")
Plotting and analysis
[128]:
# Define some plotting functions
def plot_cumulative_variance(explained_variance, target_variance=-1):
number_of_components = np.arange(0, len(explained_variance))+1
fig, ax = plt.subplots(1,1)
color = "blue"
ax.plot(number_of_components, explained_variance*100.0, marker="o", ms=2, color=color, mec=color, mfc=color)
if target_variance > 0.0:
ax.axhline(target_variance*100.0)
ax.set_ylabel("Variance [%]")
ax.set_xlabel("Number of components")
ax.grid(axis="x")
plt.show()
def plot_shape_modes(
mean_shape_columnvector,
mean_shape,
original_shape_parameter_vector,
shape_model_components,
mode_to_plot,
):
weights = [-2, 0, 2]
fig, ax = plt.subplots(1, 3, figsize=(10, 4))
x_min, x_max, y_min, y_max = np.inf, -np.inf, np.inf, -np.inf
mode_outputs = []
for j, weights_i in enumerate(weights):
shape_parameter_vector = copy(original_shape_parameter_vector)
shape_parameter_vector[mode_to_plot] = weights_i
mode_i_coords = ssm_obj.morph_model(
mean_shape_columnvector,
shape_model_components,
shape_parameter_vector
).reshape(-1, 3)
print(mode_i_coords.min(axis=0), mode_i_coords.max(axis=0))
offset_dist = pyssam.utils.euclidean_distance(
mean_shape,
mode_i_coords
)
# colour points blue if closer to point cloud centre than mean shape
mean_shape_dist_from_centre = pyssam.utils.euclidean_distance(
mean_shape,
np.zeros(3),
)
mode_i_dist_from_centre = pyssam.utils.euclidean_distance(
mode_i_coords,
np.zeros(3),
)
offset_dist = np.where(
mode_i_dist_from_centre<mean_shape_dist_from_centre,
offset_dist*-1,
offset_dist,
)
if weights_i == 0:
ax[j].scatter(
mode_i_coords[:, 0],
mode_i_coords[:, 1],
c="gray",
s=1,
)
ax[j].set_title("mean shape")
else:
ax[j].scatter(
mode_i_coords[:, 0],
mode_i_coords[:, 1],
c=offset_dist,
cmap="seismic",
vmin=-1,
vmax=1,
s=1,
)
ax[j].set_title(f"mode {mode_to_plot} \nweight {weights_i}")
mode_outputs.append(mode_i_coords)
if mode_i_coords[:,0].min() < x_min:
x_min = mode_i_coords[:,0].min()
if mode_i_coords[:,1].min() < y_min:
y_min = mode_i_coords[:,1].min()
if mode_i_coords[:,0].max() > x_max:
x_max = mode_i_coords[:,0].max()
if mode_i_coords[:,1].max() > y_max:
y_max = mode_i_coords[:,1].max()
ax[j].axis('off')
ax[j].margins(0,0)
ax[j].xaxis.set_major_locator(plt.NullLocator())
ax[j].yaxis.set_major_locator(plt.NullLocator())
for j, weights_i in enumerate(weights):
ax[j].set_xlim([x_min, x_max])
ax[j].set_ylim([y_min, y_max])
plt.show()
return mode_outputs
To check how different the shapes we are dealing with are, we first visualise the modes as point cloud from pyssam.
[129]:
mode_to_plot = 0
print(f"explained variance is {ssm_obj.pca_object.explained_variance_ratio_[mode_to_plot]}")
mode_outputs = plot_shape_modes(
mean_shape_columnvector,
mean_shape,
ssm_obj.model_parameters,
ssm_obj.pca_model_components,
mode_to_plot,
)
explained variance is 0.9900384545326233
[-2.5016487 -2.51368297 -1.14551056] [2.50164867 2.48907479 1.14551056]
[-2.2493391 -2.26309896 -0.70379257] [2.2493391 2.23509407 0.70379257]
[-1.99702951 -2.01251494 -0.26207458] [1.99702954 1.98111369 0.26207458]

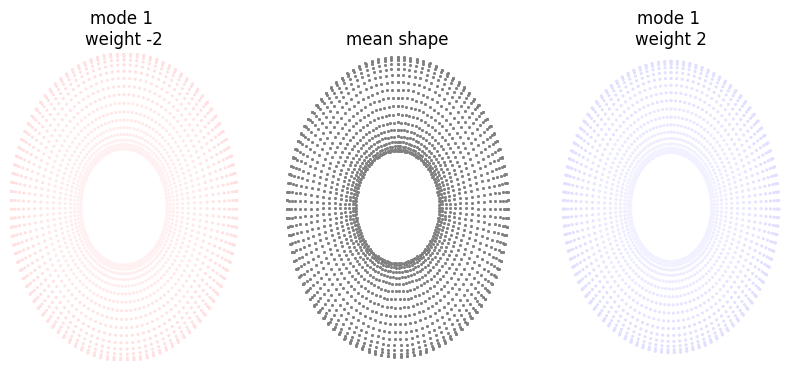

If the variable USE_SCALED_DATA above is true, the following should show essentially no variation.
[130]:
mode_to_plot = 1
print(f"explained variance is {ssm_obj.pca_object.explained_variance_ratio_[mode_to_plot]}")
plot_shape_modes(
mean_shape_columnvector,
mean_shape,
ssm_obj.model_parameters,
ssm_obj.pca_model_components,
mode_to_plot,
)
explained variance is 0.009961527772247791
[-2.31098997 -2.32514025 -0.72158979] [2.31098996 2.29635696 0.72158979]
[-2.2493391 -2.26309896 -0.70379257] [2.2493391 2.23509407 0.70379257]
[-2.18768823 -2.20105766 -0.68599535] [2.18768825 2.17384694 0.68599535]
[130]:
[array([[-1.07056462e-04, 2.29635696e+00, -2.66629262e-08],
[ 1.48430922e-09, 2.28473309e+00, 1.28974730e-01],
[ 1.59584812e-09, 2.25028214e+00, 2.53804049e-01],
...,
[ 1.61458277e-09, 2.25028214e+00, -2.53804080e-01],
[ 1.61458343e-09, 2.28473309e+00, -1.28974717e-01],
[ 1.61458277e-09, 2.29634120e+00, -3.35270294e-10]]),
array([[ 8.49242188e-09, 2.23509407e+00, 2.31694552e-10],
[ 8.49242188e-09, 2.22377229e+00, 1.25793710e-01],
[ 8.49242188e-09, 2.19017100e+00, 2.47544244e-01],
...,
[ 8.49238369e-09, 2.19017100e+00, -2.47544274e-01],
[ 8.49238369e-09, 2.22377229e+00, -1.25793695e-01],
[ 8.49238369e-09, 2.23509407e+00, 2.31694344e-10]]),
array([[ 1.07073447e-04, 2.17383118e+00, 2.71263153e-08],
[ 1.55005345e-08, 2.16281148e+00, 1.22612691e-01],
[ 1.53889956e-08, 2.13005987e+00, 2.41284439e-01],
...,
[ 1.53701846e-08, 2.13005987e+00, -2.41284467e-01],
[ 1.53701839e-08, 2.16281148e+00, -1.22612674e-01],
[ 1.53701846e-08, 2.17384694e+00, 7.98658983e-10]])]
The above plots are useful, but it is nicer to visualise the output as a surface.
Mesh morphing

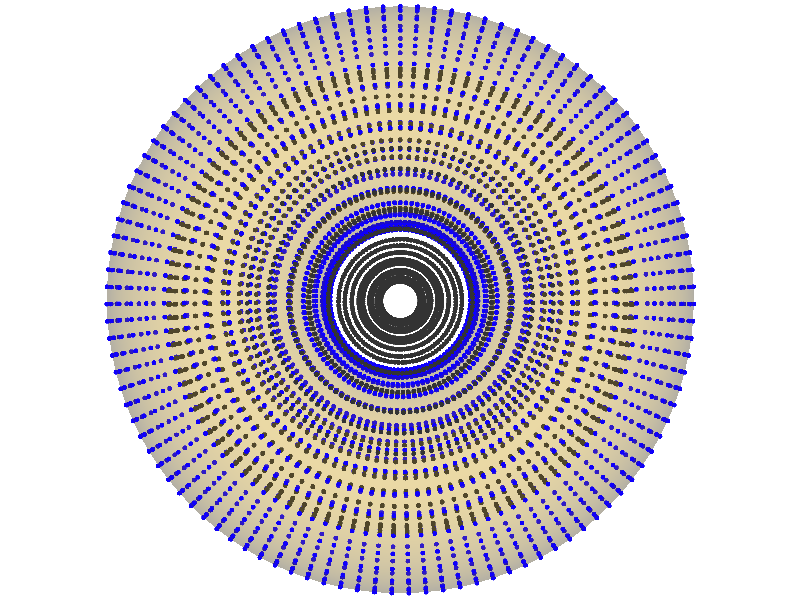

First, lets look at the template mesh and template landmarks (blue). We also show the target landmarks as black for comparison.
[131]:
TEMPLATE_CASE = 0
landmark_target = mode_outputs[0]
mesh_template = torus_data[TEMPLATE_CASE]
landmark_template = landmark_coordinates[TEMPLATE_CASE]
v.show(mesh_template.alpha(0.2), v.Points(landmark_template, r=5, c="blue"), v.Points(landmark_target, r=5))
[131]:

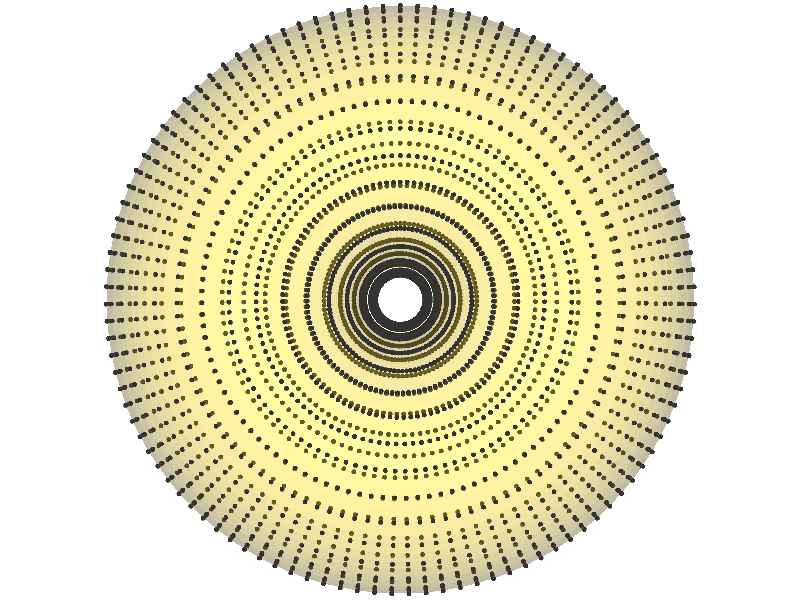

Now we will mesh the template to the target. We then will visualise the target mesh and landmarks.
[132]:
mesh_target_i = pyssam.morph_mesh.MorphTemplateMesh(landmark_target, landmark_coordinates[TEMPLATE_CASE], torus_data[TEMPLATE_CASE]).mesh_target
v.show(mesh_target_i.alpha(0.2), v.Points(landmark_target, r=5))
[132]:
The Kernel crashed while executing code in the the current cell or a previous cell. Please review the code in the cell(s) to identify a possible cause of the failure. Click <a href='https://aka.ms/vscodeJupyterKernelCrash'>here</a> for more info. View Jupyter <a href='command:jupyter.viewOutput'>log</a> for further details.
